18,6 mi

AUTONOMY*

52,9 lb

+3,3 lb Battery

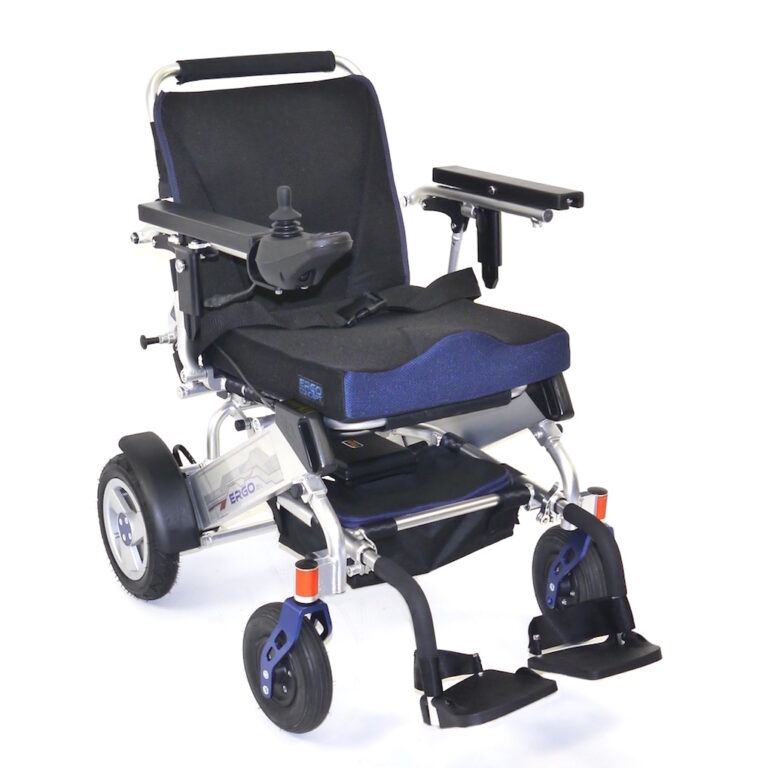

ERGO 08L 2.0 wheelchair

Ergo 08L 2.0 is an ultra POLYVALENT electric wheelchair! Light, compact and equipped with many adjustments (backrest, footrest, armrests, joystick…), this model is adapted to the needs of people with reduced mobility. With its new simplified folding system (3 seconds), and its double-pallet footrests, it opens up new perspectives for users of folding electric wheelchairs.

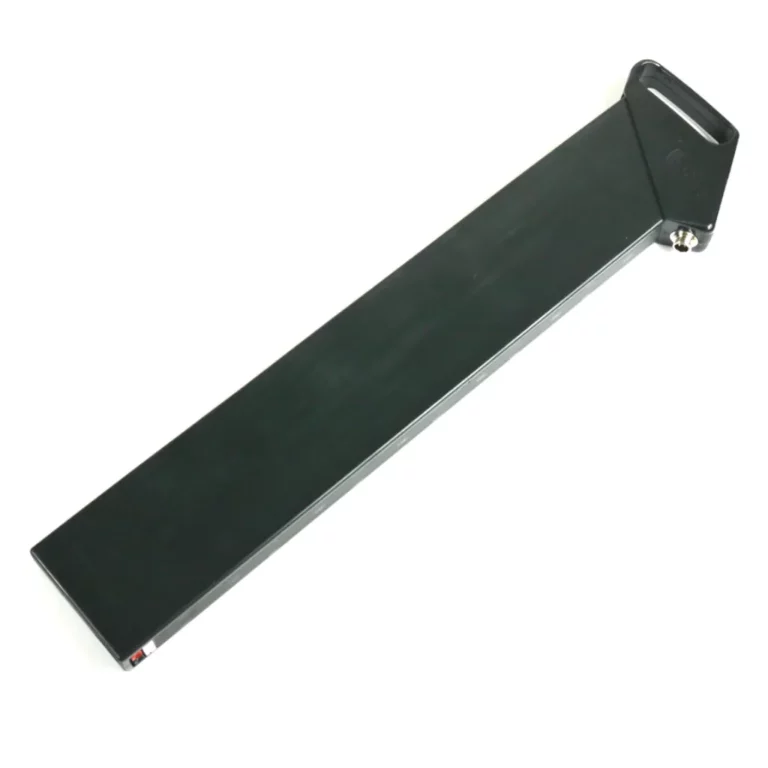

*18,6 miles range with an optional second battery.

A concentrate of innovation

Innovative, compact, adjustable

Innovative, compact and equipped with numerous adjustments, the ERGO 08L 2.0 electric wheelchair accompanies you in your daily movements and travels.

Technical characteristics

Weight without battery	Battery weight	Max. speed	Max. weight	Range	Crossing	Safety slope	Overall width	Overall length	Dimensions when open	Dimensions when folded	Seat cushion	Space between armrests	Floor-to-seat height
52,9 lb	3,3 lb	3,7 mph	253,5 lb	18,64 mi*	2,36 in	6°	23,6 in	31,5 - 41 in	41 x 24 x 35 in	23,6 x 14 x 28,2 in	15 x 16,9 x 2,4 in	17.7 - 19.3 in	20.5 in

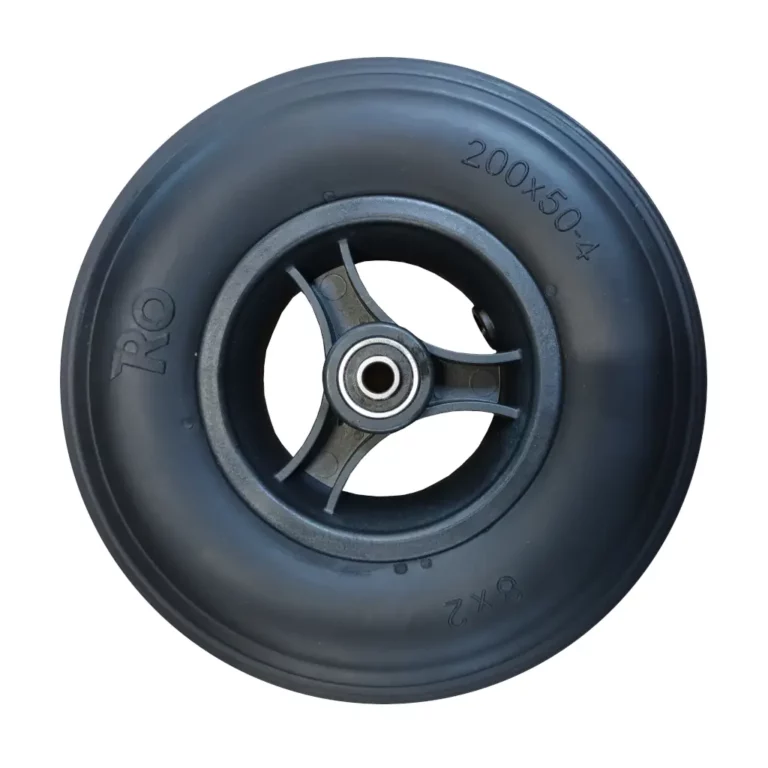

Front wheel	Front wheel type	Rear wheel	Rear wheel type	Turning radius	Battery type	Aircraft compatible	Power (Watts)	Folding time	Chassis, motor, and electrical warranty	Chassis type
8 inches	Tires	10 inches	Band	28,3 in	Lithium	Yes	2x200 W	3 secondes	2 years	Aluminium

Benefits and Settings

Ultra light
Foldable in 3 seconds
Backrest tilt by jack
Height-adjustable backrest
Reclining backrest: 3 positions
Compact: suitable for the trunk of a small car
Indoor and outdoor use
Autonomy: 9,3 to 18,6 miles

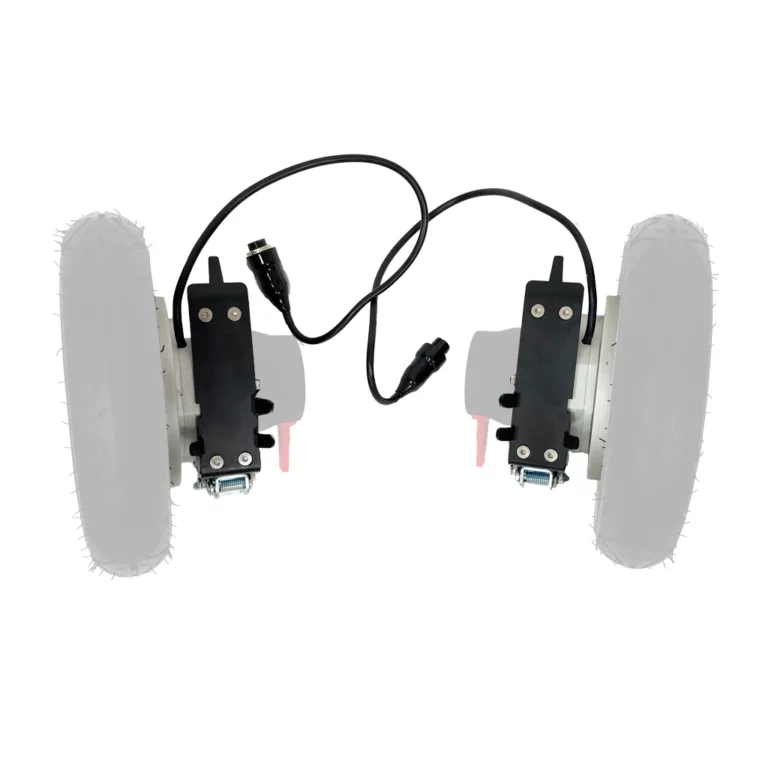

Optional: Clip & Go E08 (Lightens the chair by 19,8 lb)
Adaptable with many accessories

Easy folding

Fold and unfold your chair in one easy step. The chair fits in the trunk of most cars.
Dimensions closed: 23,6 x 14,2 x 28,35″

Atlas lifting system

Ergo Atlas is the 1st ultra-practical removable boot crane. This electric loading accessory makes it effortless to transfer your ErgoConcept Wheelchair or Scooter or any other load (suitcases) into the boot of your car. Using a remote control, easily lift your mobility solution and install it in the boot of a city car thanks to the many advantages of the Ergo Atlas

Reclining backrest

Tilt from 90° to 125°

Accessible, easy and fluid, the cylinder allows you to choose the ideal inclination of the backrest.

The backrest of the Ergo 08L is adjustable:
• inclination
• in height
• a tension

Photos à venir…

Retractable armrests

Convenient for approaching a table or getting down from the chair.

The retractable armrests are extremely easy to lower and raise. To raise them, push the tab under the armrest and then raise it. Conversely, simply lower it until you hear a « click » to lock it in place.

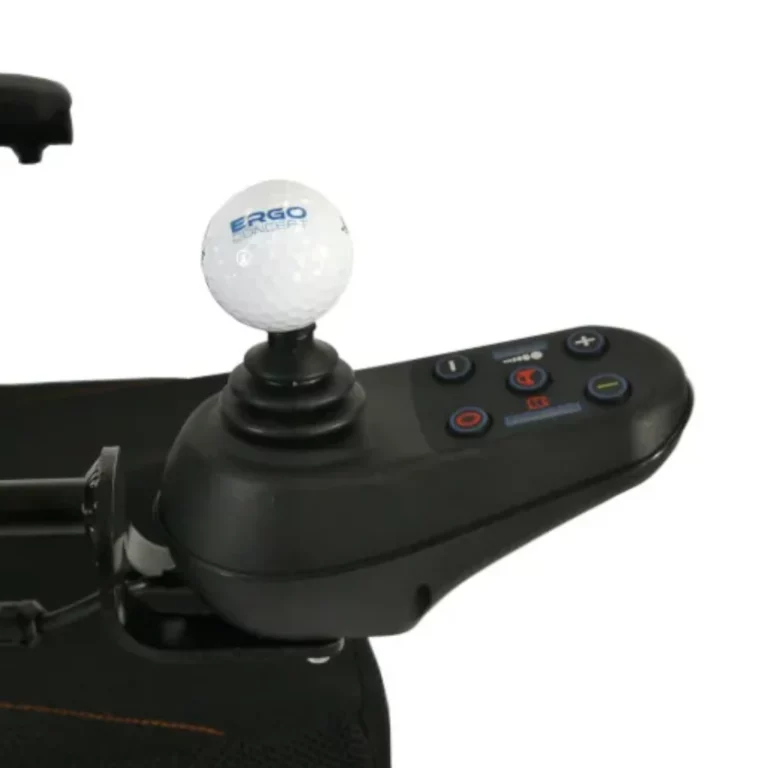

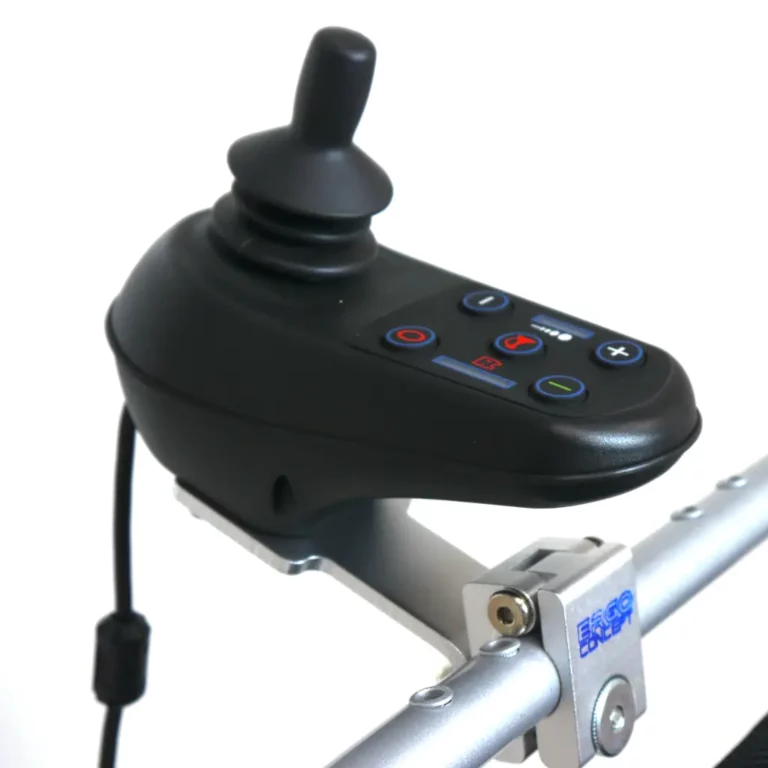

Easy-to-use joystick

Folding wheelchair’s joystick The ERGO 08 L 2.0 is modern and allows for smooth steering. It displays the speed and battery level. It also features a horn to help you navigate through crowds or alert motorists of your presence.

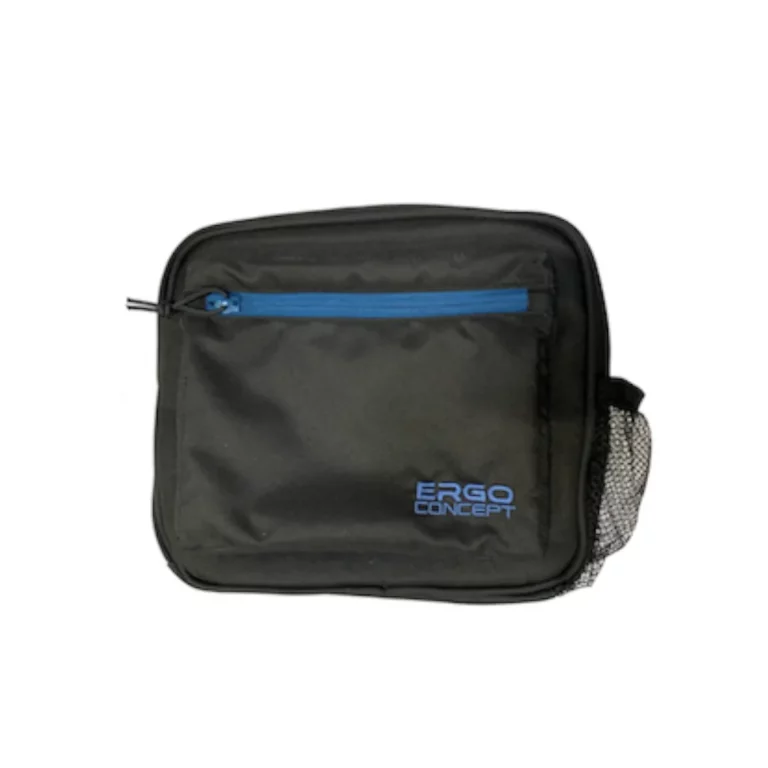

2 practical storage spaces

Wheelchair The ERGO 08L 2.0 is equipped with two storage spaces:

A back pocket for you or your caregivers
a storage bag with a zipper under the chair

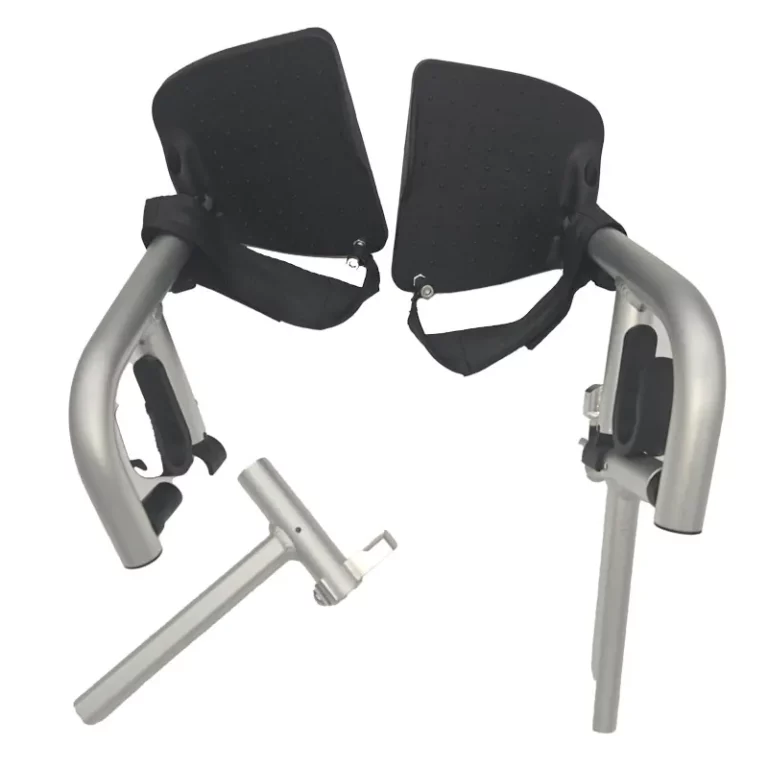

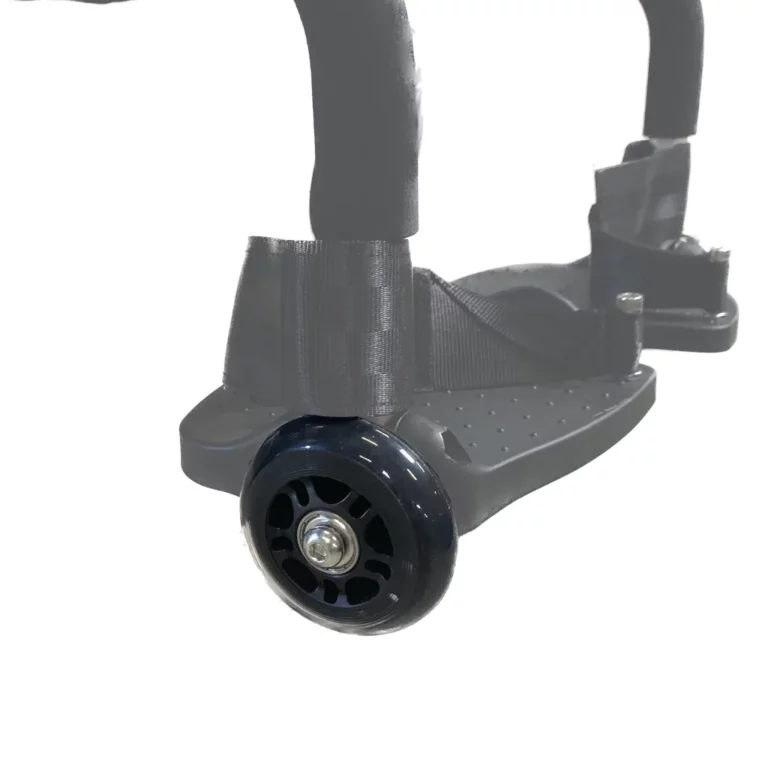

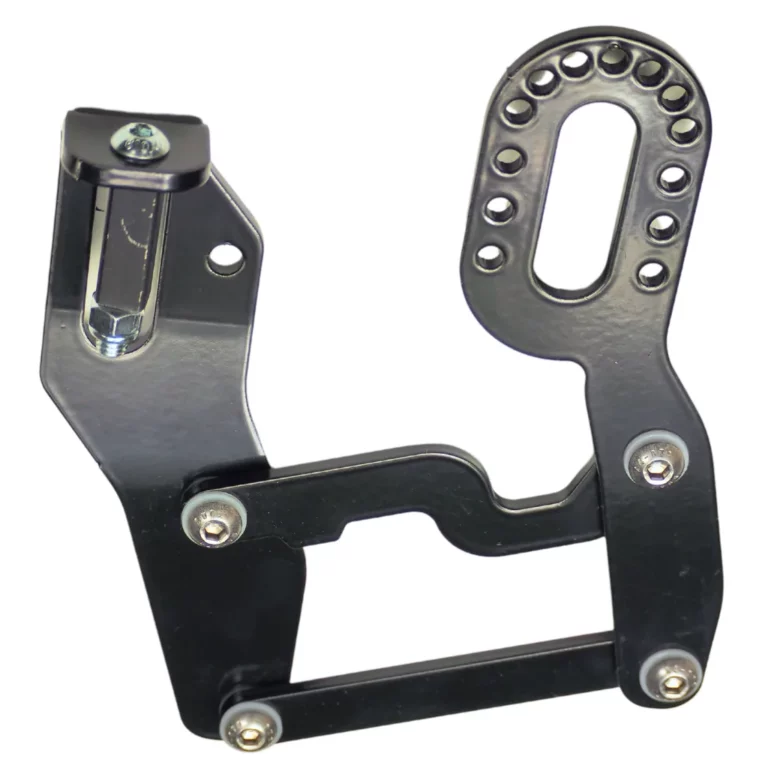

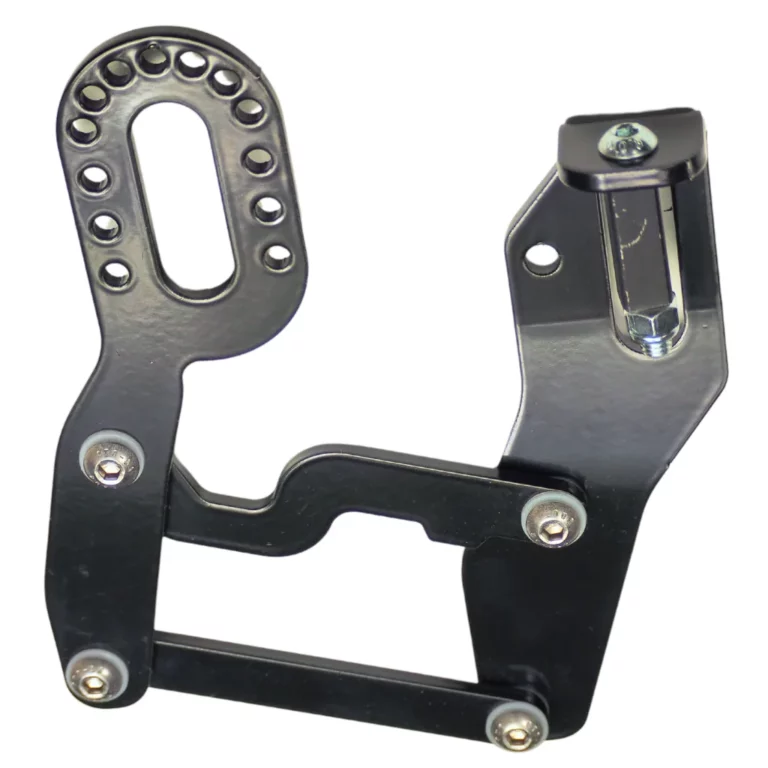

Adjustable footrests

The E08 chair’s double footrest can be adjusted in height or depth. The footrests can be easily removed thanks to their quick release.

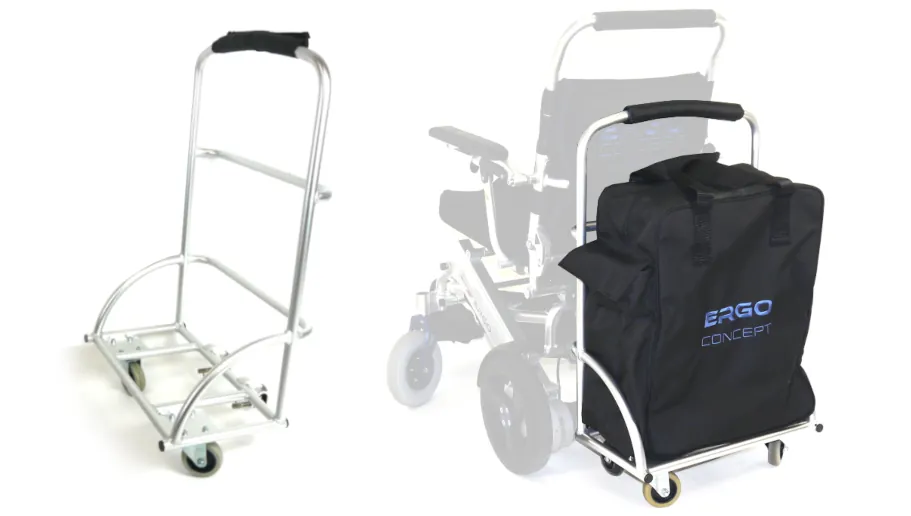

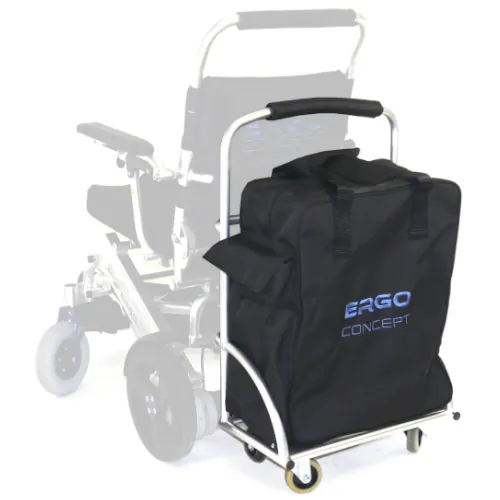

Luggage rack

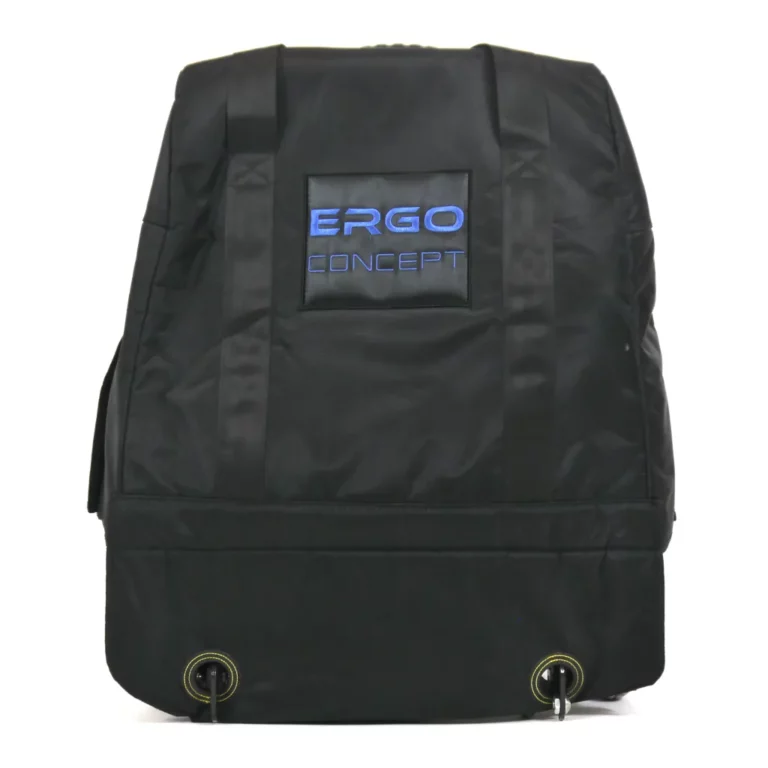

The luggage rack allows you to attach the ErgoConcept Luggage Bag or any other suitcase to the back of the chair. The ideal accessory for traveling , as well as for everyday shopping.

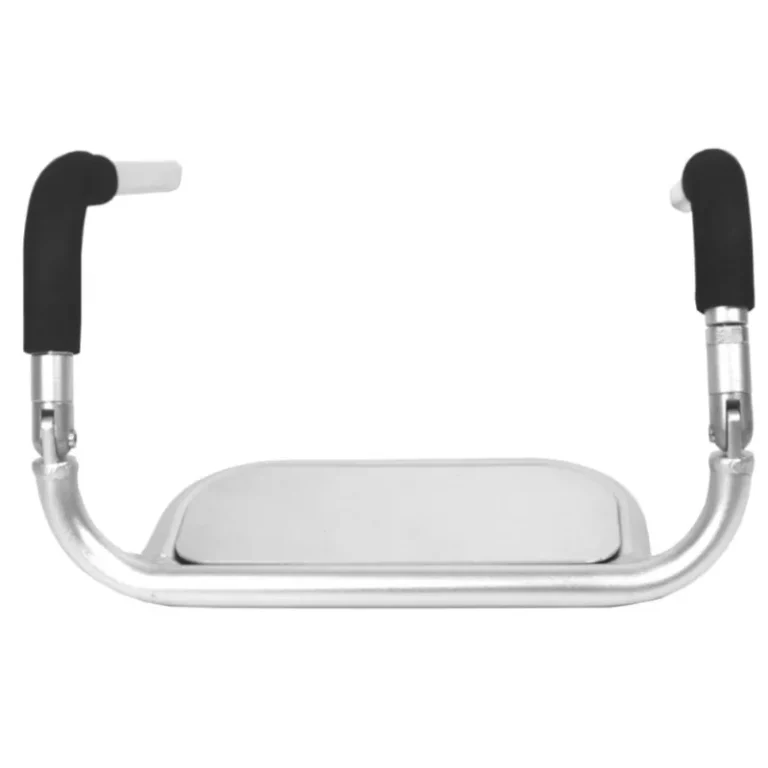

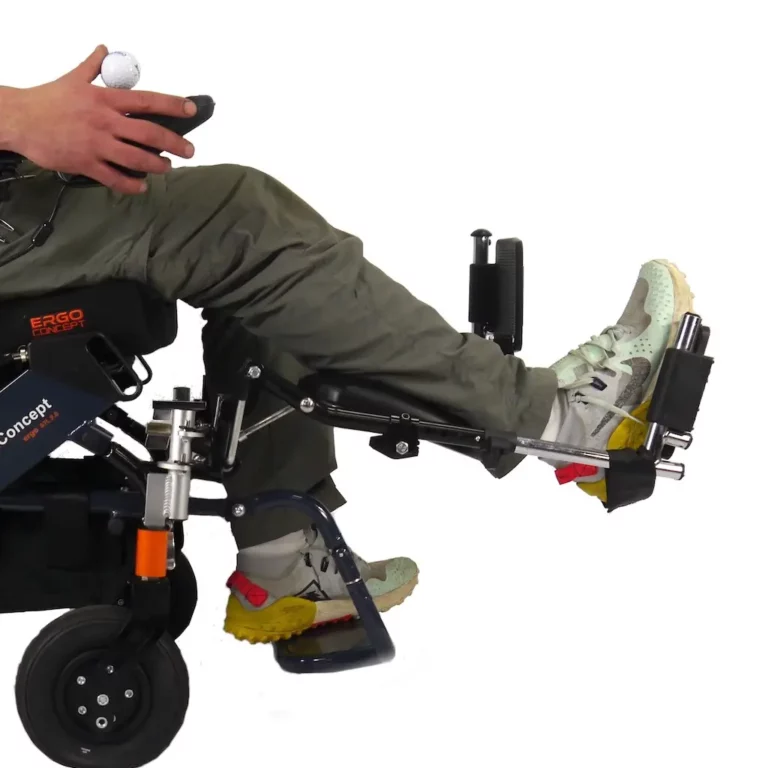

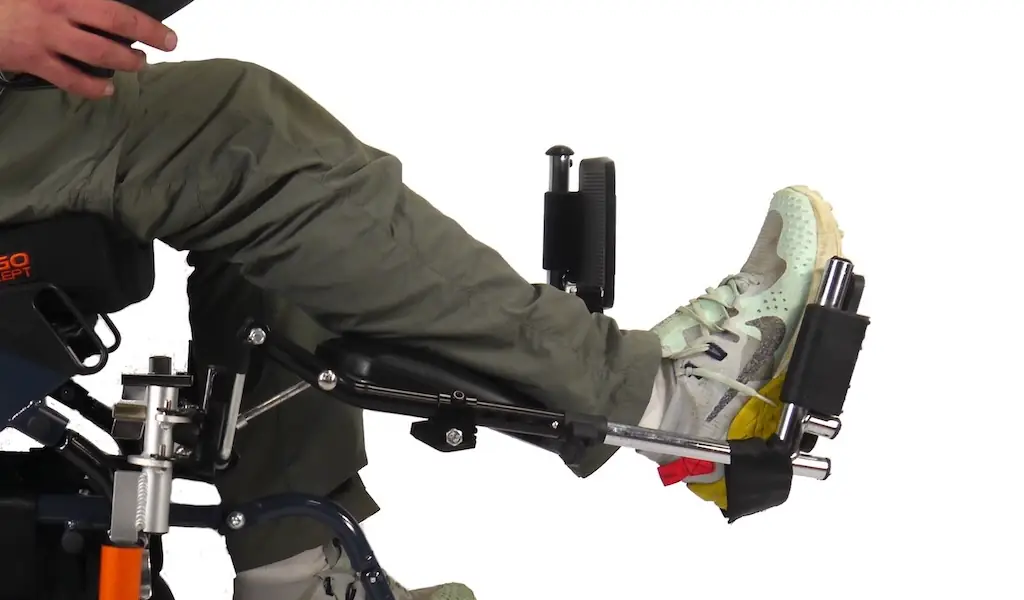

Leg rest (optional)

The leg rest allows you to keep your leg extended. This equipment is sold as an option.
